The data are given as ad indication and our Company is entitled to modify the described machines at any time, owing to technical or commercial reasons.

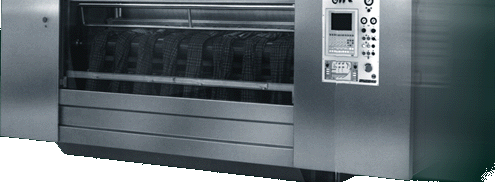

FLEXIRAPID 600 is used for scouring and high-speed scouring of fabrics in rope and tubular form. Wool and wool blends with other fibres, terital/rayon, Jersey-knitted fabrics and similar, blankets, felts, etc., from 70 to 1500-2000 g/m2 can all be easily processed on this machine.
Possibility to obtain medium/light milling effects and avoid the milling bath for most treatable fabrics.
Processing times reduced up to 70/80% compared to treatments on traditional rope scouring machines.
Considerable saving of chemicals (up to 50/60%) and water, due to a particularly efficient double outlet scouring system.
Possibility to process fabric pieces even up to 400/500 m in length.
Self contained trough with up to 600 kgs capacity (dry weight) with all internal parts in stainless steel.
Sliding doors with all external parts and lockers in stainless steel.
Double scouring device for loads up to 8 or 15 ropes. Greater water saving and easy choice of optimal load.
Automatic devices to preset and control water levels in scouring and rinsing baths.
Electronic equipment to control and maintain baths temperature.
2 safety devices against damages caused by accidental winding of the fabric around the rear lower and upper small pushing rollers and 2 safety devices with sensitivity regulators according to the weight of the processed fabric which automatically stop the machine and immediately lift the top roller should knots, irregular thickenings or breaks in the seams occur on the fabric.
Scouring device for sack-sewn fabrics and milling plate pneumatically adjustable.
Unloading device in stainless steel to unload all ropes via a winch at a speed of approx. 80 m/min.
Front panel with all machine controls including a synoptic quadrant with light signals allowing visual checks of working parts.
Electric, electronic, electro-pneumatic and thermal-hydraulic control equipments, which, due to the considerable automation of this machine, have been rigourously studied and tested.
Machine designed for full process automation.
Main control by Direct Current motor, of adequate power, allowing speed variation of squeezing rollers from 0 to 400 m/min. Pendular reducer in oil bath.
