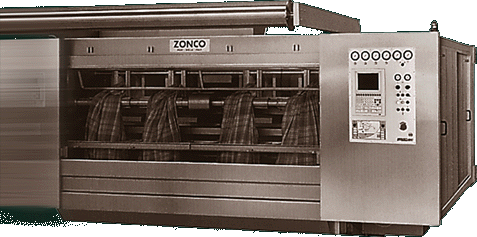

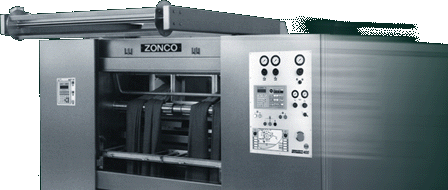

FLEXICOM 400 and 800 are used for high speed scouring and milling processes in various combinations for fabrics made of wool and blends from 100 to 1200 gms/m2. | ||
![]() |
![]() ![]() ![]() | ||
![]() ![]() |
Ability to process even the most difficult fabrics in rope form. | ||
![]() ![]() |
Achievement of high milling percentages (up to 45%). | ||
![]() ![]() |
Reduction of up to 70/80% of traditional separate scouring and milling processing times. | ||
![]() ![]() |
Remarka-ble savings in chemicals and water due to a particularly efficient double outlet scouring system. | ||
![]() ![]() |
Moving, swelling and opening of fabric creases by a powerful air jet system. | ||
![]() |
![]() ![]() ![]() | ||
![]() ![]() |
Self contained trough with up to 400 and 800 Kgs capacity (dry weight) with all internal parts in stainless steel. Minimum load: 15 kgs each channel (samples, single pieces, etc.). | ||
![]() ![]() |
Sliding doors with all external parts and locks in stainless steel. | ||
![]() ![]() |
2 and 4 separate channels with independent warp and weft milling control. | ||
![]() ![]() |
3 safety devices which automatically stop the machine and immediately lift the top rollers should knots, irregular thickenings or breaks in the seams occur on the fabric. | ||
![]() ![]() |
2 and 4 electronic devices to detect slippages between cloth and rollers, each channel having an independent signal. | ||
![]() ![]() |
Electronic length measurement device, very precise. | ||
![]() ![]() |
Unloading device in stainless steel to simultaneously unload all ropes via a winch at a speed of approx. 60 mts/min. | ||
![]() ![]() |
Automatic device to preset and control water levels in scouring and rinsing baths. | ||
![]() ![]() |
Electronic equipment to control and maintain baths' temperature. | ||
![]() ![]() |
Double device for spraying solutions, either dilute or concentrate, allowing a very uniform distribution of milling agents, including a 350 and 650 lts stainless steel solutions tank. | ||
![]() ![]() |
Front panel with all machine controls including a synoptic quadrant with light signals allowing visual cheks of working parts. | ||
![]() ![]() |
Electric, electronic, electro-pneumatic and thermal-hydraulic control equipments which, due to the considerable automation of these machines, have been rigourously studied and tested. | ||
![]() ![]() |
The machines are already prepared for the installation of a complete process automation. | ||
![]() ![]() |
Main control by Direct Current motor, of adequate power, allowing speed variation of milling rollers from 0 to 400 (FL400) and 300 mts/min (FL800). Pendular reducer in oil bath. | ||
![]() ![]() |
Air jet system which moves the fabric within the trough and also opens the fabric to avoid creasing. This system is powered by a high capacity centrifugal fan with sets of suitably directed air nozzles. All system is made in stainless steel.
![]() | ||
![]() ![]() |
New: On demand, the machines are supplied fully equipped with patented device for continuous measuring of milling process in each channel, through sensor/magnet, enabling to constantly control the shrinkage in length of fabrics during the whole process, with automatic stop once the required final measure has been reached. | ||
![]() |
![]() ![]() ![]() | ||
![]() ![]() |

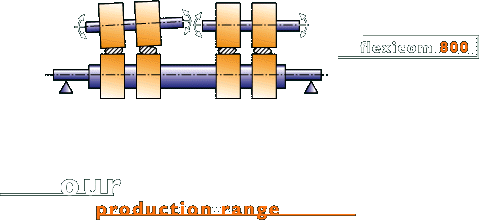

Particular of upper roller
4 upper rollers mounted on a shaft devided into two parts. This special construction enables a regular forward motion of the fabric in every milling channel, even with lo pressure between the rollers. ![]() ![]() ![]() | ||
![]() ![]() |
