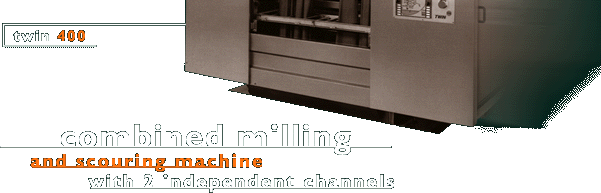

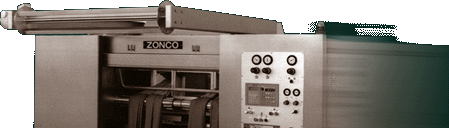

TWIN, the new milling/scouring machine with 2 independently controlled channels, has been derived directly from FLEXICOM 400 of which it maintains the main technical characteristics. The remarkable processing versatility has now been further improved. |
|
 | ||
|
TWIN is used for milling and scouring operations for users having very diversified productions in small lots. | ||
|
 | ||
|
Possibility to carry out, in the single channels, milling and scouring processes on fabrics with completely different working parameters.. | ||
|
Possibility to reproduce processes thanks to electronic control devices. | ||
|
 | ||
|
TWIN has the main technical characteristics of FLEXICOM 400, but with the following modifications: | ||
|
Self-supporting trough with central partition to avoid contact between the fabric ropes being processed in the two channels. | ||
|

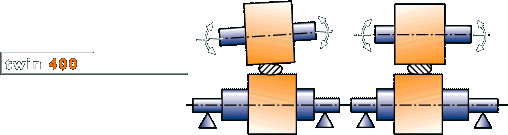

2 channels, separate, with independent control of all process parameters, such as: | ||
|
process speed by means of two different DC motors. | ||
|
milling percentage in weft and warp. | ||
|
quantity and distribution of milling soaps. | ||
|
individual electronic devices for fabric slippages control and automatic stop with lifting of rollers in the involved channel. | ||
|
electronic installation with PLC-Video screen, for a complete automation of processes and feeding of chemical products necessary to the cycles (standard equipment). | ||
|
 |
|
|
|
 |
|

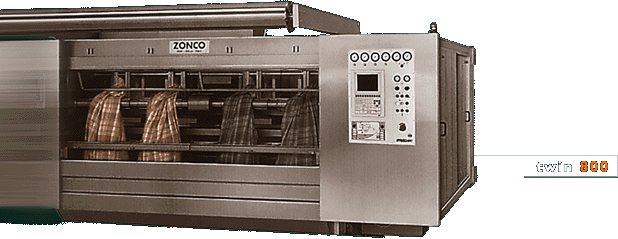

TWIN, our new MIlling/Scouring machine with 2 pairs of channels controlled and driven independently, has been derived directly from FLEXICOM 800 of which it maintains the main technical features. The remarkable processing versatility has now been further improved. | ||
|
| ||
|
TWIN is used for milling and scouring operations by users having some ever diversified productions, also in small/medium lots. | ||
|
| ||
|
Possibility to carry out, in each pair of channels, milling and scouring processes on fabrics with completely different working parameters. | ||
|
Possibility to reproduce processes, thanks to electronic control devices. | ||
|

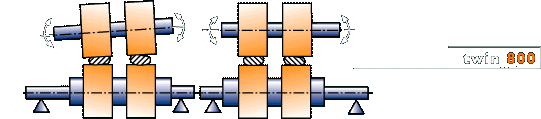

4 channels, separate, with independent control of all process parameters, such as: | ||
|
Electronic devices for the individual control of fabric slippages, and automatic stop with lifting of rollers in the involved channel. | ||
|
| ||
|
TWIN has the main technical features of FLEXICOM 800, but with following modifications: | ||
|
Main drive by means of two DC motors, one for each pair of channels. | ||
|
Self-supporting trough with central partition to avoid contact between the fabric ropes being processed in the two pairs of channels. | ||
|
Setting and maintaining of the scouring/rinsing bath levels inside the troughs, adjustable for each pair of channels, with remarkable savings in water and chemicals. | ||
|
Electronic installation with PLC-Videoterminal, for a complete automation of processes, and feeding of chemicals necessary to the working cycles (standard equipment). | ||
|
 | ||
 | |||
